德国洛克原装进口高压蝶阀 主营

工作压差： 2.5~10Mpa

适用介质： 水

压力环境： 高压

品牌： 洛克

介质温度： -29℃～550℃

货号： 20204201

型号： DE LOCKE

驱动方式： 手动、气动、电动

外型尺寸： 中型

用途： 开关

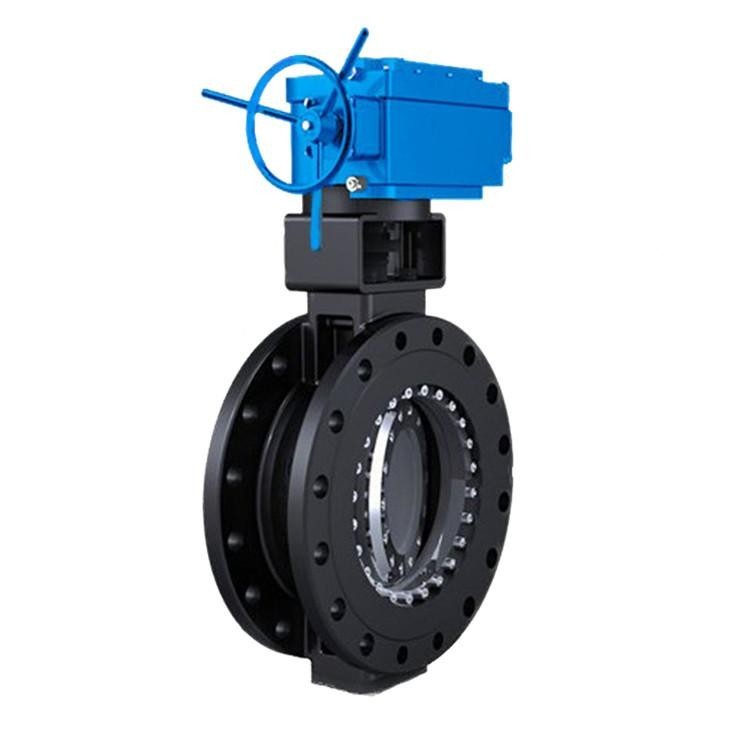

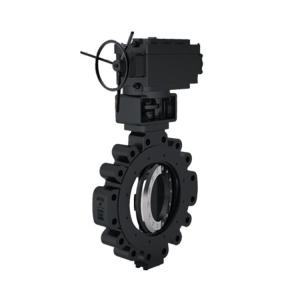

洛克原装高压蝶阀

高压蝶阀结构特点:

阀板与阀座的密封面为斜圆锥结构,在阀板斜圆锥表面堆焊耐温、耐蚀合金材料;固定在调节环压板之间的弹簧与压板上调节螺栓装配一起的结构。这种结构有效地补偿了轴套与阀体之间的公差带及阀杆在介质压力下的弹性变形,解决了阀门在双向互换的介质输送过程中存在的密封问题。

高压蝶阀规格参数:

称通径:DN40mm~DN1000m

公称压力:150Lb~600Lb

适用温度:-29℃~550℃

驱动方式:蜗轮驱动

适用介质:空气、水、蒸汽、煤气以及酸、碱、盐带有弱腐蚀性介质等

主要零部件材料:WCB、CF8、CF3、CF3M

采用标准:1、本蝶阀的设计制造按API609的标准。

                 2、 检验和试验按API598标准。

                 3、结构长度尺寸按API609标准。

                 4、端法兰连接尺寸按ANSI  B16.*-1992标准。

Specifications and parameters of imported high pressure butterfly valve:
Weighing diameter: dn40mm ~ DN 1000M
Nominal pressure: 150Lb ~ 600Lb
Applicable temperature: - 29 ℃ ~ 550 ℃
Drive mode: worm gear drive
Applicable media: air, water, steam, gas and acid, alkali, salt with weak corrosive media
Main parts materials: WCB, CF8, CF3, cf3m
Standards: 1. The butterfly valve is designed and manufactured according to API 609.
2. Inspection and test according to API598 standard.
3. The length of the structure is in accordance with API609 standard.
4. The connection size of end flange is in accordance with ANSI b16.*-1992.


高压蝶阀主要应用:

化工、石化、冶炼、医药、食品等行业中SO2、蒸汽、空气、煤气、氨气、CO2气、油品、水、盐水、碱液、海水等介质的管路上作为调节和截流装置使用

Main application of imported high pressure butterfly valve:
In chemical, petrochemical, smelting, medicine, food and other industries, SO2, steam, air, gas, ammonia, CO2 gas, oil, water, brine, lye, seawater and other medium pipelines are used as regulating and intercepting devices


高压蝶阀产品简介:

洛克《DE LOCKE》高压蝶阀(High pressure valve)适用范围已可以耐压高达 2500 磅级,耐温低至 -196 ℃高达 700 ℃,密封达到 0 泄漏,调控比高达 100:1 以上。也就是说在各种严酷、关键的过程控制管线上,不论是开关阀还是调控阀,只要选型得当,现在都可以放心地使用蝶阀,而且成本低廉。超高压蝶阀阀芯采用三偏心金属硬密封蝶阀实现双向密封,能正、反双向承压,正或反向承压时均不发生内漏。

Introduction of imported high pressure butterfly valve products:
The high pressure valve imported from German Locke can withstand pressure as high as 2500 pounds, withstand temperature as low as - 196 ℃ as high as 700 ℃, seal up to zero leakage, and control ratio as high as 100:1. That is to say, in all kinds of severe and critical process control pipelines, whether it is on-off valve or control valve, as long as the selection is appropriate, butterfly valve can now be safely used, and the cost is low. The imported ultra-high pressure butterfly valve core adopts three eccentric metal hard seal butterfly valve to realize two-way sealing, which can bear both positive and negative pressure, without internal leakage.


高压蝶阀订货须知:

A、若订货前还未选定型号,请向我们提供您的使用参数:

1.公称通径 2.产品型号 3.流体性质(包括公称压力、温度、介质) 4.阀体、密封材料 5.连接方式

B、若已经由设计单位选定我公司的产品型号,请按型号直接向我司销售部订购

C、当使用的场合非常重要或管路比较复杂时,请您尽量提供设计图纸和详细参

数,由我们洛克阀门技术员为您审核把关。
