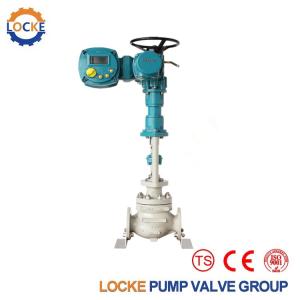

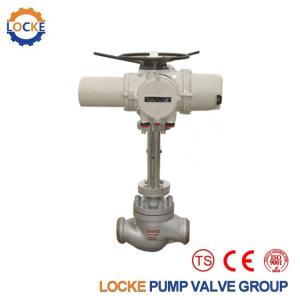

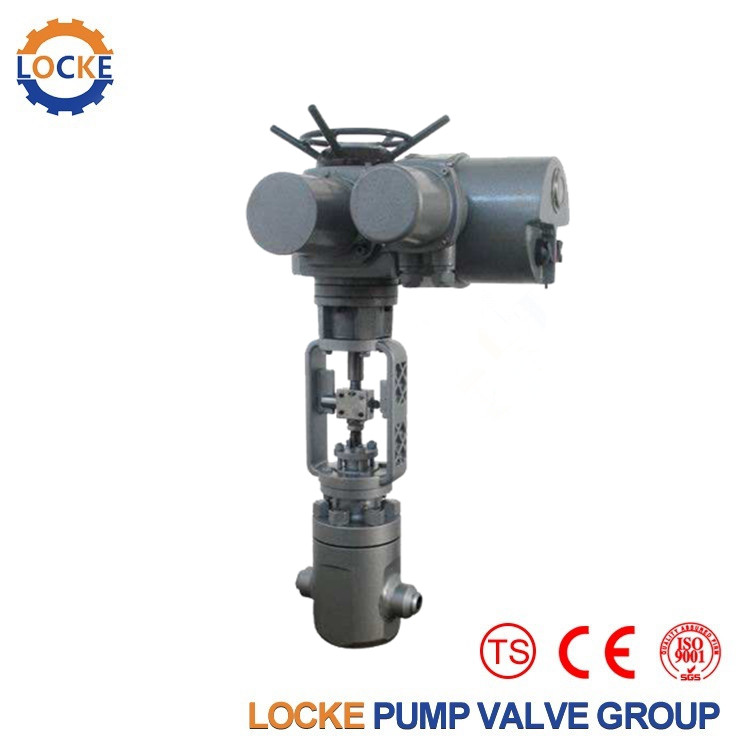

进口电动高压调节阀德国洛克各种参数以及说明 主营

工作压差： 1.6~6.4Mpa

适用介质： 水

压力环境： 常压

品牌： 洛克

介质温度： -17～+230℃

货号： 20204201

型号： DE LOCKE

驱动方式： 电动

外型尺寸： 中型

用途： 调节

电动高压调节阀洛克各种参数以及说明

一、电动高压调节阀技术参数:

阀体形式 直通铸造球型阀

公称通径 DN15~200mm

公称压力 PN1.6~6.4MPa

法兰标准 GB/T9113、 JB/T79

连接形式 法兰(FF RF RTJ)、焊接(SW BW)、螺纹(适用于1″以内)

阀盖形式 标准型-17~+230℃、高温型+230~+450℃

压盖型式 螺栓压紧式

密封填料 V型聚四氟乙烯填料、含浸聚四氟乙烯石棉填料、石棉纺织填料、石墨填料

执行器技术参数

电源电压         220V/50Hz

输入信号         4-20mA或1-5V·DC

输出信号         4-20mA·DC

防护等级         IP55

隔爆标志         ExdⅡBT4

手操功能         手柄

环境温度         -25~+70℃

环境湿度         ≤95%

温包、毛细管材料 H62、1Cr18Ni9Ti

毛细管长度         3米、5米、10米

温度控制范围     0~250℃

设定值偏差         ±2℃

电动高压调节阀主要特点:

1.本系列产品采用完合拆装式结构,操作力距小,阀腔内件(包括阀座、阀芯、节流组件、密封件等)均可从并阀腔取出,维护保养十分方便,阀体不需从管道上割下,可长期使用。

2.阀芯为柱塞体平衡式结构,操作力距小,调节灵敏高。

3.节流组件由多孔板集流式节流环与套筒式节流套组成,且配以均流罩,因此具有小流量高压差无气蚀、大流量、调节性能好,流体排出梳流无噪音的综合特性,完全满足了高压差等苛刻工况的要求,有效地实现了高温、高压差流体的流量调节控制,可调性好,调节精度高。

4.节流环可在阀门工作行程的55%之内,实现多级减压节流

5.阀芯和阀座密封面堆焊司钛莱硬质合金,抗冲刷、耐蚀。

Main features of imported electric high pressure control valve:
1. This series of products adopt complete disassembly structure, with small operating force distance. The parts in the valve cavity (including valve seat, valve core, throttle assembly, seal, etc.) can be taken out from the valve cavity. The maintenance is very convenient, and the valve body does not need to be cut off from the pipeline, so it can be used for a long time.
2. The valve core is of plunger body balanced structure, with small operating force distance and high adjustment sensitivity.
3. The throttling assembly is composed of multi hole plate flow collecting type throttling ring and sleeve type throttling sleeve, and is equipped with flow equalizing cover, so it has the comprehensive characteristics of small flow, high pressure difference, no cavitation, large flow, good regulation performance, and no noise in fluid discharge comb flow. It fully meets the requirements of severe working conditions such as high pressure difference, and effectively realizes the flow regulation and control of high temperature and high pressure difference fluid, with good adjustability and high regulation efficiency It has high precision.
4. The throttle ring can achieve multi-stage decompression and throttling within 55% of the valve working stroke
5. The sealing surface of valve core and valve seat is overlaid with Stellite cemented carbide to resist erosion and corrosion.

电动高压调节阀描述:

DE LOCKE洛克电动高压调节阀,由PSL系列或者DE LOCKE系列直行程电动执行机构和高压调节阀体组成。电动笼式高压调节阀是针对调节阀在高压或高压差、有严重汽蚀、冲蚀的严酷工况条件下寿命短、阀杆易断裂、衬套易脱落严重问题研制开发的产品。电动高压调节阀采用笼式节流形式来分摊压差,减少了气蚀、冲蚀、挠流破坏,大大提高了调节阀的使用寿命,特别是用在尿素系统中比普通高压阀寿命提高2-3倍。

电动执行机构为一体化结构,内有伺服放大器,输入控制信号(4~20mADC或1~5VDC)及电源即可控制阀门开度,达到对压力、流量、液位、温度等工参数的调节。阀体为直通式,阀芯为单导向结构,阀体流路简单,阻力小,电动高压调节阀特别适用于高粘度,含有悬浮物和颗粒状介质流体的调节,可避免结焦、粘结、堵塞。电动高压调节阀整体具有动作灵敏、连线简单、流量大、体积小、调节精度高等特点。

Description of imported electric high pressure regulating valve:
The electric high pressure regulating valve imported from Germany is composed of PSL series or de lock series straight stroke electric actuator and high pressure regulating valve body. Electric cage type high-pressure control valve is developed to solve the problems of short service life, easy fracture of valve stem and easy falling off of bushing under the severe conditions of high pressure or high pressure difference, serious cavitation and erosion. The electric high-pressure control valve adopts the form of cage throttling to share the pressure difference, which reduces cavitation, erosion and torsion damage, and greatly improves the service life of the control valve, especially in the urea system, which is 2-3 times longer than the ordinary high-pressure valve.
The electric actuator is an integrated structure with servo amplifier. The valve opening can be controlled by inputting the control signal (4 ~ 20mADC or 1 ~ 5VDC) and power supply to achieve the adjustment of pressure, flow, liquid level, temperature and other parameters. The valve body is straight through type, and the valve core is single guide structure. The valve body has simple flow path and small resistance. The electric high-pressure regulating valve is especially suitable for the regulation of fluid with high viscosity, suspended solids and granular medium, which can avoid coking, sticking and blocking. The electric high pressure regulating valve has the characteristics of sensitive action, simple connection, large flow, small volume and high regulation precision.


电动高压调节阀订货须知:

A、若订货前还未选定型号,请向我们提供您的使用参数:

1.公称通径 2.产品型号 3.流体性质(包括公称压力、温度、介质) 4.阀体、密封材料 5.连接方式

B、若已经由设计单位选定我公司的产品型号,请按型号直接向我司销售部订购

C、当使用的场合非常重要或管路比较复杂时,请您尽量提供设计图纸和详细参数,由我们洛克阀门技术员为您审核把关。
