进口电动保温调节阀德国洛克产品介绍 主营

工作压差： 1.6~6.4Mpa

适用介质： 水

压力环境： 常压

品牌： 洛克

介质温度： -17～+250℃

货号： 20204201

型号： DE LOCKE

驱动方式： 电动

外型尺寸： 中型

用途： 调节

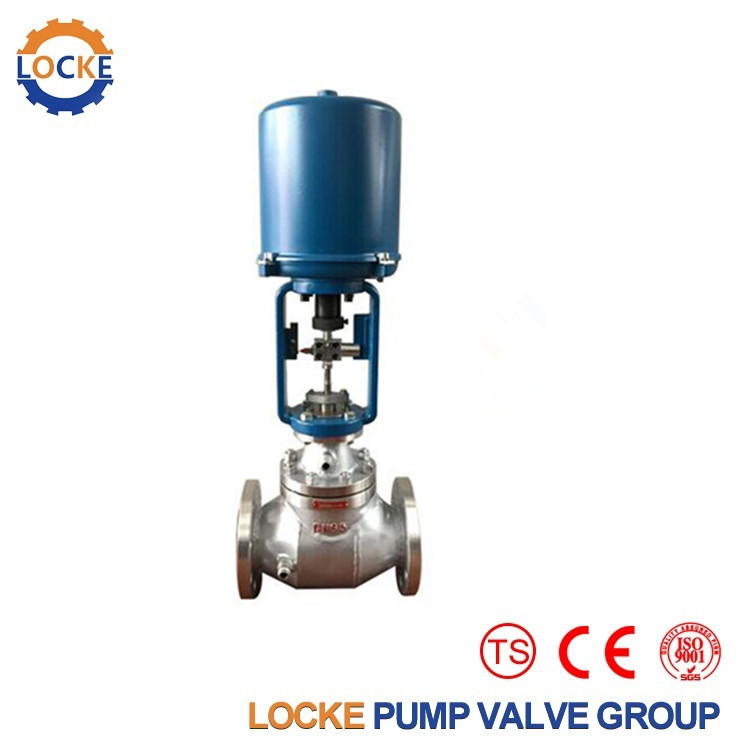

电动保温调节阀洛克产品介绍

电动保温调节阀产品参数:

公称通径(DN):20-300mm

阀座直径(dn):20-300mm

公称压力(MPa) :1.6-6.4Mpa

阀盖形式 标准型(-17~+250℃)、高温型(+250~+450℃)、低温型(-40~-196℃)、波纹管密封型(-40~+350℃)

压盖形式 螺栓压紧式

阀芯形式 单座式、套筒式

流量特性 等百分比、快开特性

配置执行器类别 3810系列、PSL系列等电动执行器(客户*品牌亦可)

执行器参数 电源电压:220V、输入信号:4-20mA或1-5V?DC、输出信号:4-20mA?DC

防护等级:相当IP65、隔爆标志:ExdⅡBT4(ExdⅡBT6特殊定制)、手操功能:手柄

环境温度:-25~+70℃、环境湿度:≤95%

Imported electric insulation control valve product parameters:
Nominal diameter (DN): 20-300 mm
Valve seat diameter (DN): 20-300 mm
Nominal pressure (MPA): 1.6-6.4mpa
The valve covers are standard (- 17 ~ + 250 ℃), high temperature (+ 250 ~ + 450 ℃), low temperature (- 40 ~ - 196 ℃), bellows seal (- 40 ~ + 350 ℃)
Gland type bolt compression type
The valve core is single seat type and sleeve type
Flow characteristics equal percentage, quick opening characteristics
Configuration actuator category 3810 series, PSL series and other electric actuators (customers can also specify the brand)
Actuator parameters: power supply voltage: 220 V, input signal: 4-20 mA or 1-5 v? DC, output signal: 4-20 ma? DC
Protection grade: equivalent to IP65, flameproof sign: Exd Ⅱ BT4 (Exd Ⅱ BT6 special custom), manual function: handle
Ambient temperature: - 25 ~ + 70 ℃, ambient humidity: ≤ 95%


电动保温调节阀零件材料:

阀体            WCB              304             316                316L

垫片        PTFE\石墨垫片    PTFE\石墨垫片    PTFE\石墨垫片     PTFE\石墨垫片

阀座/套筒       304              304             316                316L

阀芯            304              304             316                316L

导向套/并帽     304              304             316                316L

中垫        PTFE\石墨垫片    PTFE\石墨垫片    PTFE\石墨垫片     PTFE\石墨垫片

阀盖            WCB              304             316                316L

阀杆            304              304             316                316L

保温夹套        25               304             316                316L

填料        PTFE/石墨        PTFE/石墨        PTFE/石墨         PTFE/石墨

螺栓            25            不锈钢            不锈钢            不锈钢

填料压盖       WCB               304             316                316L

电动保温调节阀产品简介:

洛克《DE LOCKE》电动保温调节阀—Electric Insulation control valve,采用智能一体化电装,采用带夹套保温的阀体,适用于需要保温的易凝固结晶的介质的压力,温度,流量的调节。当工艺介质的结晶温度低于环境温度或流体温度降低,造成粘度增加或流体出现凝固时,这时在阀体和上阀盖处增设蒸汽保温夹套装置,使工艺介质满足过程控制的需要。电动保温调节阀阀芯采用上导向结构,阀结构紧凑,有呈S流线型的通道,使其压降损失小,流量大,可调范围广,流量特性精度高,符合IEC534-2-1976标准。电动保温调节阀配以3810系列(PSL系列)电子式电动执行器及低流阻调节阀阀体组成,电动执行机构为一体化结构,内有伺服放大器,输入控制信号(4-20mADC或1-5VDC)及电源即可控制阀门开度,达到对压力、流量、液位、温度等工参数的调节。电动保温调节阀的泄漏量符合ANSI B16.104标准。

Introduction of imported electric insulation control valve products:
The electric insulation control valve imported from German Rockwell "de Locke" adopts intelligent integrated electric device and valve body with jacket insulation, which is suitable for adjusting the pressure, temperature and flow of the medium that needs insulation and is easy to solidify and crystallize. When the crystallization temperature of the process medium is lower than the ambient temperature or the temperature of the fluid decreases, resulting in the increase of viscosity or the solidification of the fluid, a steam insulation jacket device is added at the valve body and the upper valve cover to make the process medium meet the needs of process control. The valve core of the electric thermal insulation control valve adopts the upper guide structure, the valve structure is compact, and there is a s-streamline channel, so that the pressure drop loss is small, the flow rate is large, the adjustable range is wide, and the flow characteristic accuracy is high, which meets the iec534-2-1976 standard. The imported electric insulation control valve is composed of 3810 series (PSL Series) electronic electric actuator and low flow resistance control valve body. The electric actuator is an integrated structure with servo amplifier. The valve opening can be controlled by inputting control signal (4-20madc or 1-5vdc) and power supply to achieve the adjustment of pressure, flow, liquid level, temperature and other parameters. The leakage of electric insulation control valve meets the ANSI b16.104 standard.


电动保温调节阀订货须知:

A、若订货前还未选定型号,请向我们提供您的使用参数:

1.公称通径 2.产品型号 3.流体性质(包括公称压力、温度、介质) 4.阀体、密封材料 5.连接方式

B、若已经由设计单位选定我公司的产品型号,请按型号直接向我司销售部订购

C、当使用的场合非常重要或管路比较复杂时,请您尽量提供设计图纸和详细参数,由我们洛克阀门技术员为您审核把关。
